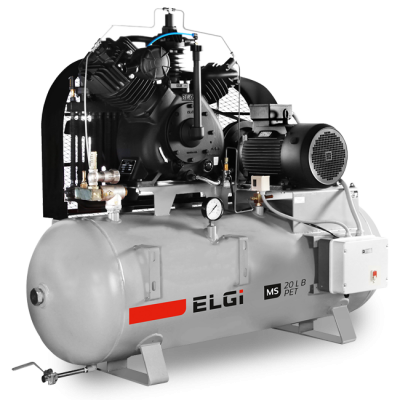

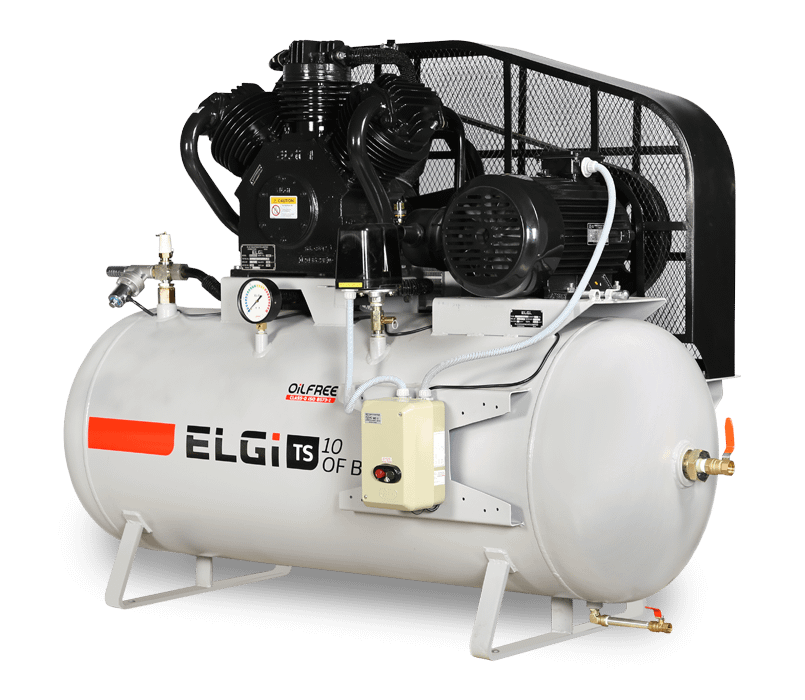

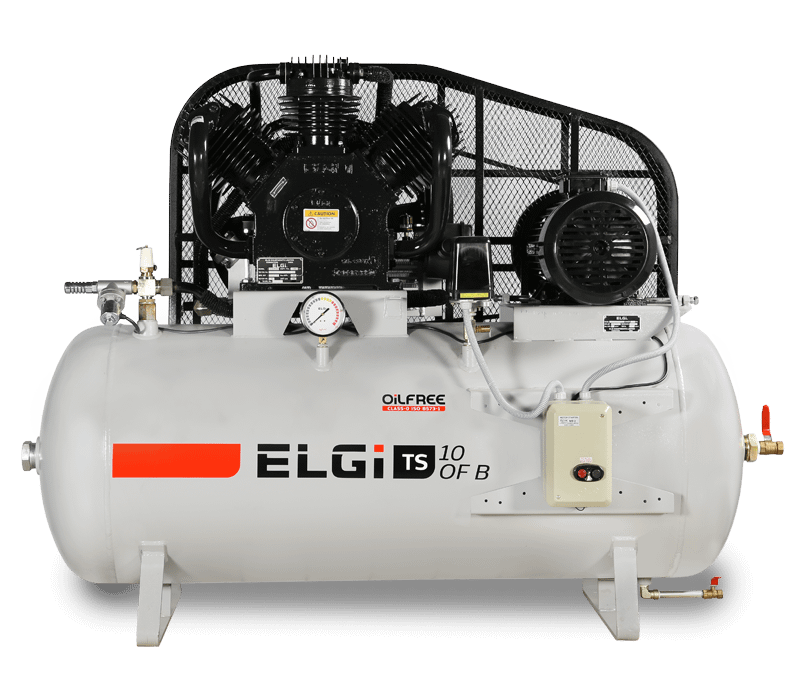

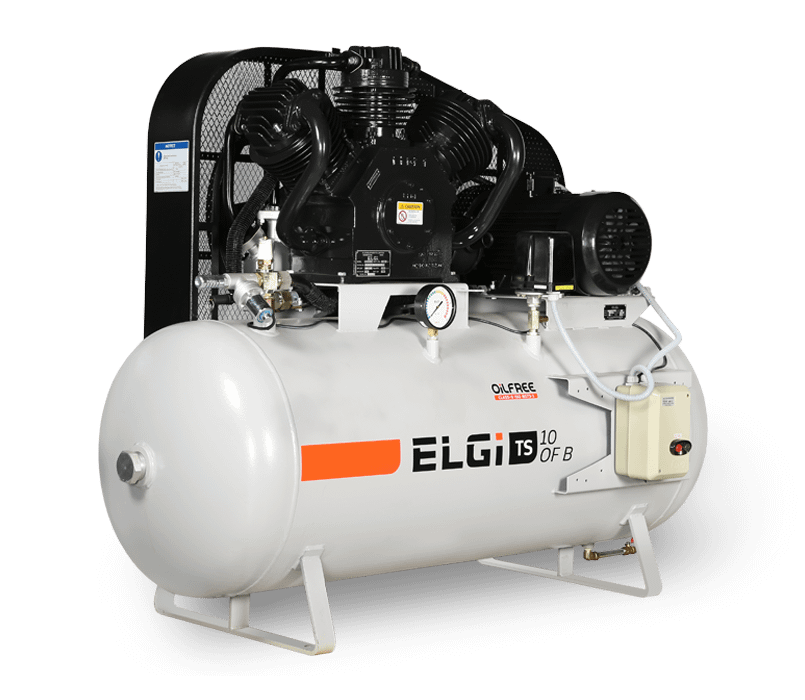

Oil Free Piston Compressor

5-15 HP TWO-STAGE

Two stage oil free piston compressors deliver clean, dry air with maximum reliability, energy efficiency and ease of maintenance to meet the exacting demands of oil free air across various industries. Select models are offered with desiccant driers for applications that demand low pressure dew points.

High Pressure Piston Compressors

TECHNICAL SPECIFICATIONS

Model Piston Displacement FAD Power Tank Dimension  Weight

lpm cfm
lpm cfm
HP KW
 litres     (lxbxh)mm         kg
TS 10 OF 420
1260 45
963 34
10 7.5
  420 1650 x 880 x 1315         kg
TS 10 OF BM
1260 45
     963      34
     10       7.5
          –    1545 x 675 x 830          kg
TS 15 OF 420
1679 59
1274     45
    15      11
          420    1650 x 880 x 1315          kg
TS 15 OF BM
1679 59
1274       45
     15  11
            –     1545 x 675 X 830          kg
Note:
Maximum operating pressure is 10 bar
Unit performance measured as per ISO 1217 Edition 3,Annexure C

Why Two-Stage Oil Free Piston Compressors?

  • Unique suction through crank case design ensures no unwanted vacuum generation in the crank case
  • Cylinder walls are specially coated for wear and corrosion resistance
  • Flanged aluminium aftercooler for efficient cooling
  • Robust cast iron block for long life
  • PTFE Coated Piston & Piston Rings
  • Deep finned cylinders for efficient heat dissipation
  • Delivery unloader for automatic unloading of compressed air in the delivery pipelines

Applicable Industries

Oxygen/Nitrogen Generation Plants | Laboratories research Facilities | Pharmaceutical Industry | Food Processing | Packaging | Electronics Production | Ozone Generation | Printing Equipment | Fermenters | Applications That Are Zero Tolerant To Oil In Compressed Air
