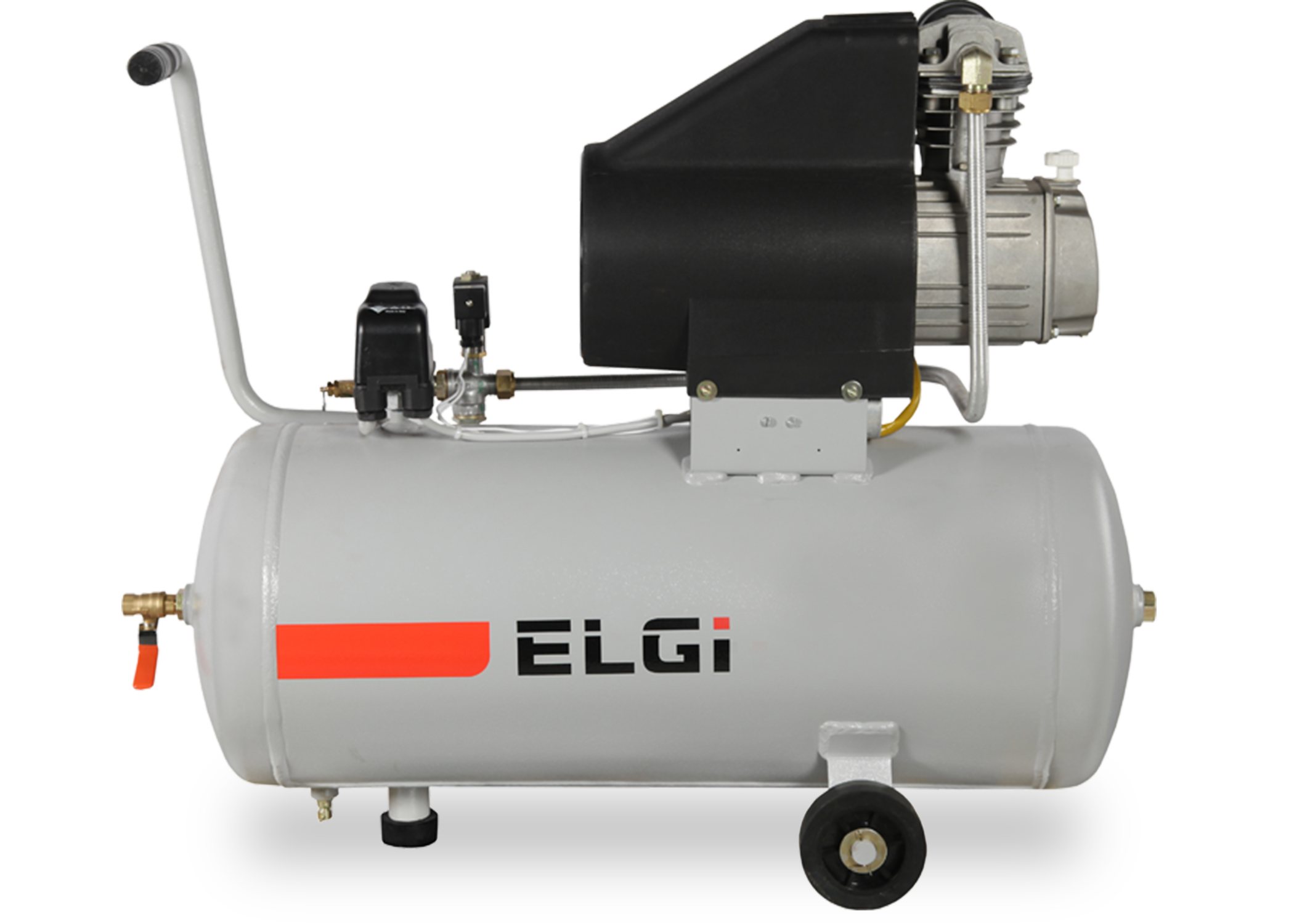

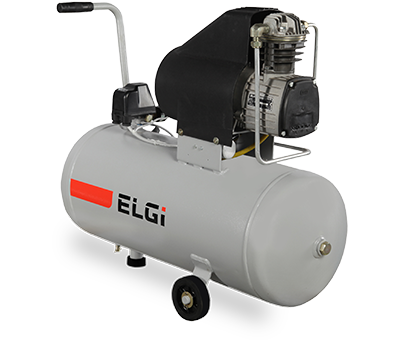

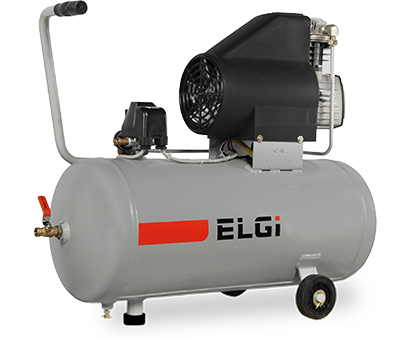

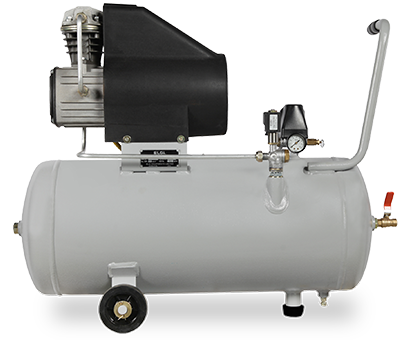

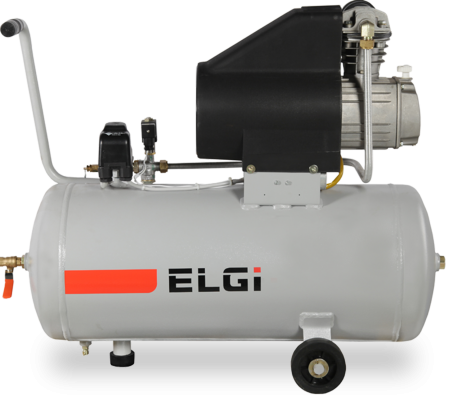

Oil Free Piston Compressor

1-4 HP SINGLE-STAGE DIRECT DRIVE

​Single stage oil free compressors address the requirements of sensitive applications. Example – oil-free air for sophisticated equipment like dental chairs, laboratory and process equipment. For critical medical air and industrial oil free air needs, ELGi offers two stage oil free compressors.

Get Quotes

    single-stage direct drive

    TECHNICAL SPECIFICATIONS

    ModelPiston Displacement FADPowerTankDimension Weight

               lpm            cfm
              lpm
    cfm

    HP

    KW
     litres           (lxbxh)mm                                   kg
    TS 10 OF 420
    126045
    96334
    107.5
      4201650 x 880 x 1315        kg
    TS 10 OF BM
    126045
         963     34
         10      7.5
     –  1545 x 675 x 830         kg
    TS 15 OF 420
    167959
    1274    45
        15     11
        420 1650 x 880 x 1315         kg

    TS 15 OF BM

    1679

    59

    1274

     45

    15

    11
          – 1545 x 675 X 830         kg
    Note:
    Maximum operating pressure is 10 bar
    Unit performance measured as per ISO 1217 Edition 3,Annexure C

    Why Single-Stage Oil Free Piston Compressors?

    • Extremely low noise - 63 dBA
    • Compact and direct drive
    • Portable, plug and play system
    • Rocking piston arrangement for low vibration
    • Robust motor with in-built overload protection
    • Internally coated air receiver for corrosion resistance
    • Unique suction through crank case design ensures no unwanted head or vacuum is generated
    • Delay timer (duplex mode) -Sequential operation mode results in power saving
    Get Quotes

      Applicable Industries

      Dental | Fermenters | Gas, Liquid And Ion Chromatography | Food Processing | Small, Sophisticated Laboratory Equipment
